Grouting the bench

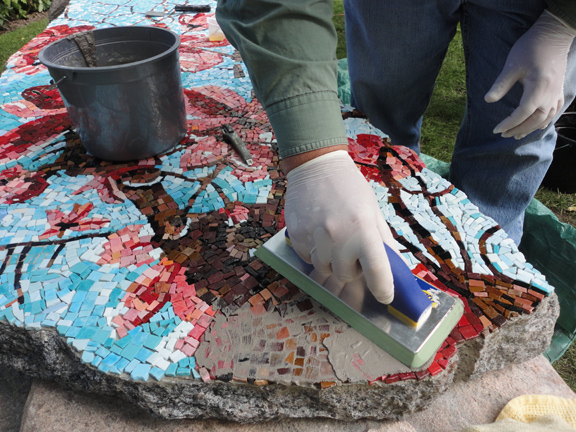

grouting2The Magnolia Bench is a traditional smalti tile mosaic. We grouted this mosaic with a fortified polimer grout called Permacolor. After the grout was spread on, we cleaned it up with damp sponges.

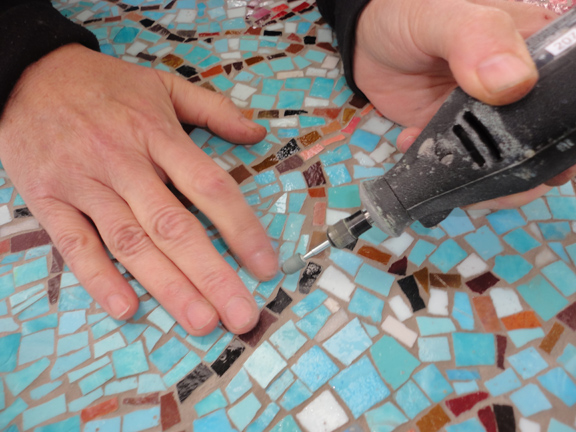

groutingWe wanted to be sure there were no sharp edges on the bench so we spent some time identifying sharp spots and cleaning them up with a Dremel tool.

sharp edges

edges

Installing the bench…

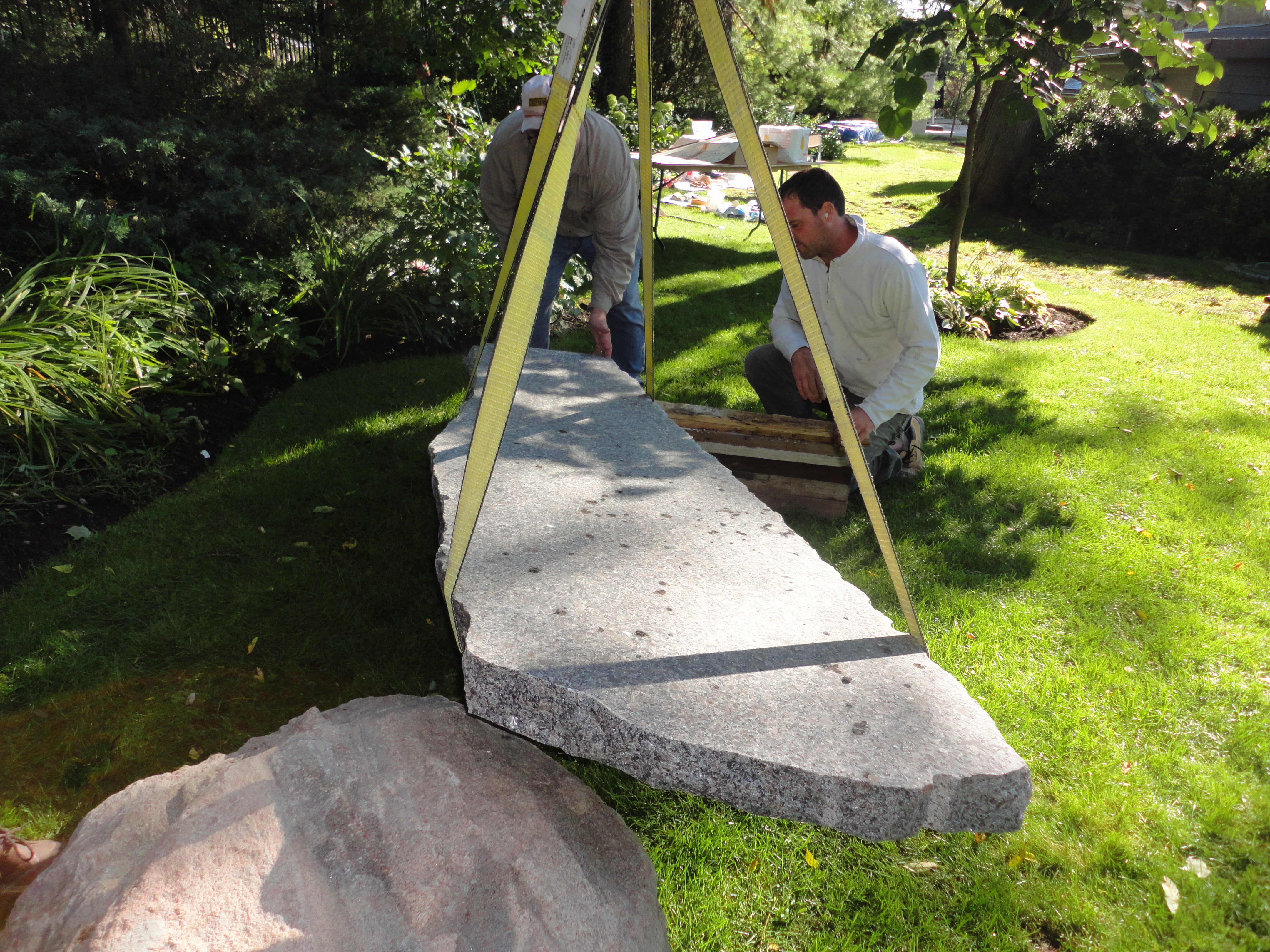

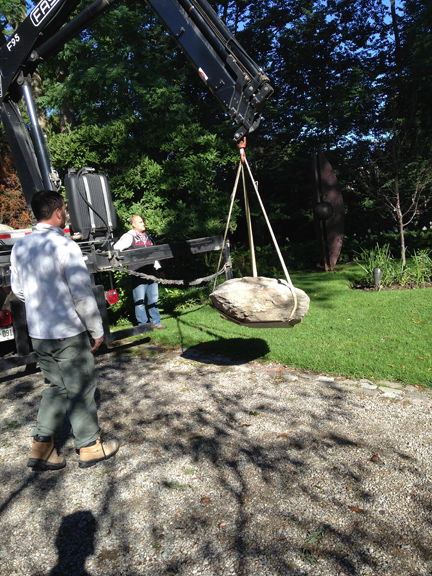

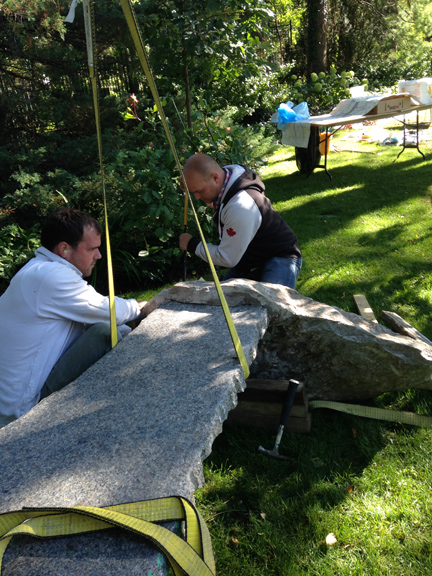

With the help of a crane, the guys from HGH Granite installed the granite for the Magnolia Bench on-site in Paris Ontario.

benchinstall1

benchinstall2

benchinstall6

benchinstall4



Magnolia Bench – making the mosaic

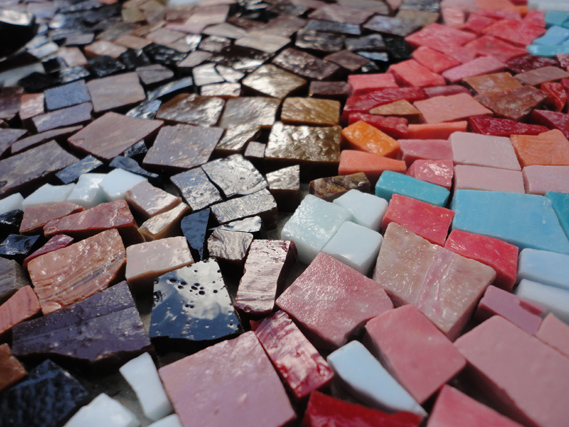

The mosaic for the Magnolia Bench is made from Italian Smalti tile. These beautiful glass tiles are roughly the same size and thickness with some variation. We use a nipper tool to cut them to size when we want them smaller. We sourced these tesserai from Glass Mosaic Canada, located on the Queensway in Toronto. Akram Gabra was able to supply us with all the colours we need, along with plenty of technical advice. He sells both the Italian Smalti and also Mexican Smalti tile at his shop.

Our approach to this mosaic was much different than our method on the birds. Since this is a bench, and we want people to be able to sit on it safely, our usual direct and highly textured approach was not going to work. As well, the project was large enough and complex enough that we wanted to be able to build the mosaic in sections in the studio, transport the sections to the site and reassemble on-site. Initially we used tacky clear vinyl to hold the sections in place, with masking tape on the back to reinforce, but we evolved our process to using clear vinyl on both sides. We were able to transport the sections safetly by neatly stacking them in layers with corrugated cardboard.

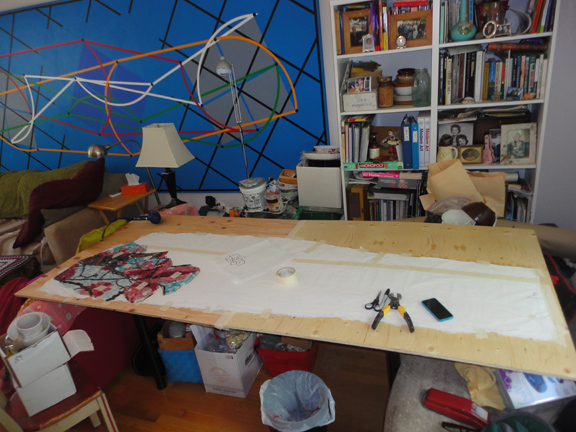

getting started

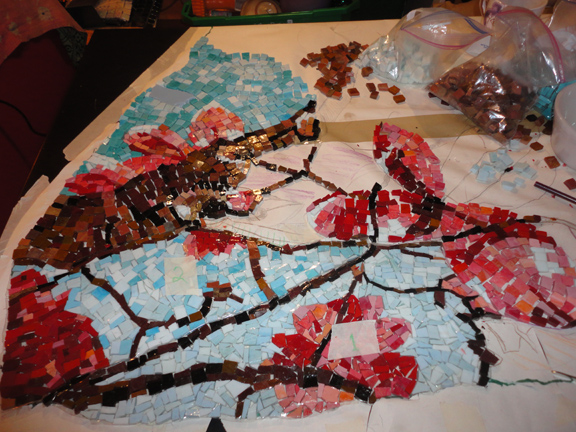

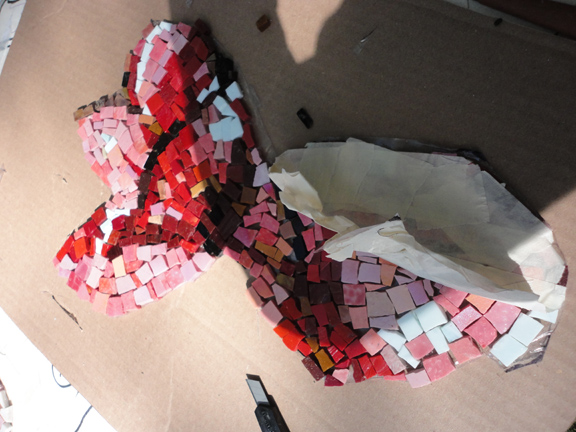

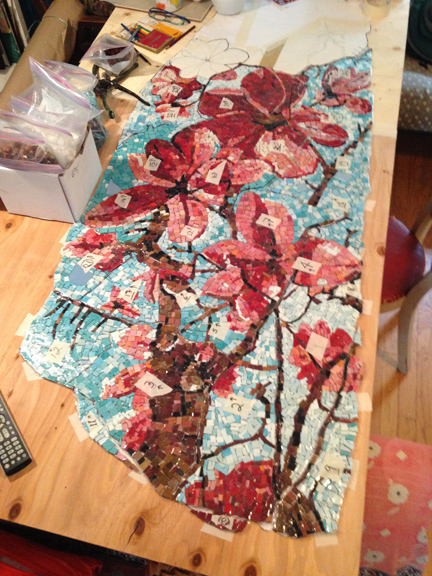

We tried wherever possible to create sections of mosaic that followed lines in the drawing. The drawing paper represented the contour of the stone. We made a drawing on the paper, which then became the map for the whole piece. halfwaysectionssection_site2

The Carving

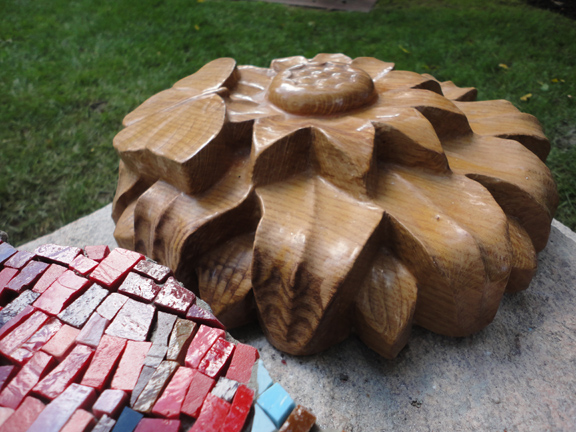

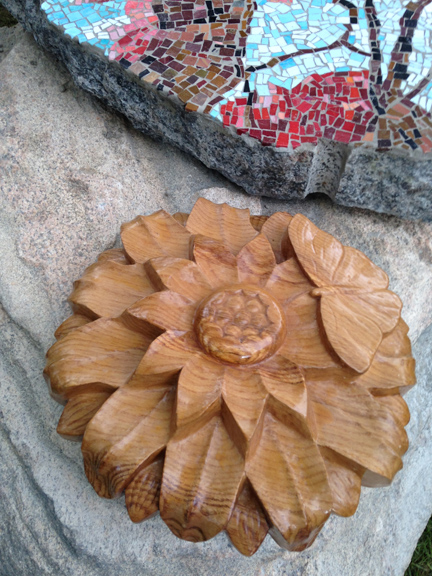

Ruth Arnold created the carving from white oak. It’s finished with West System epoxy – a marine grade epoxy which will keep the wood preserved – and carnauba wax.

carving_side

carving1

Granite

slab before shapingThe stone for the Magnolia Bench came from HGH Granite in Dundas. They were recommended to us by our friend Reinhard Reitzenstein, and it turned out Kevin at HGH was great to work with. The first step for us was to drive to Dundas and look at some stone and start talking about how we might make a stone bench. Kevin’s crew was able to shape the slab the way we wanted it, and we learned they could work with boulders so we could fit the slab in with a pair of boulders in a very dynamic way.

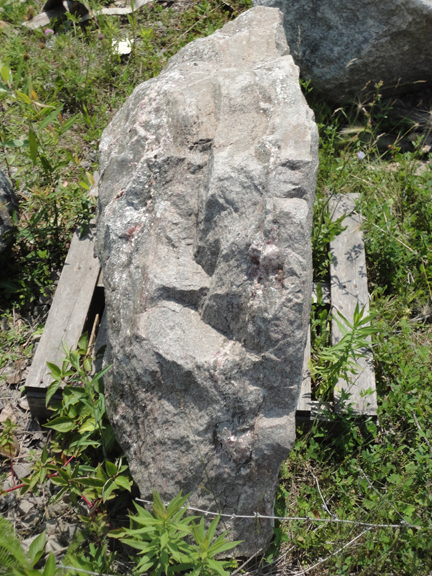

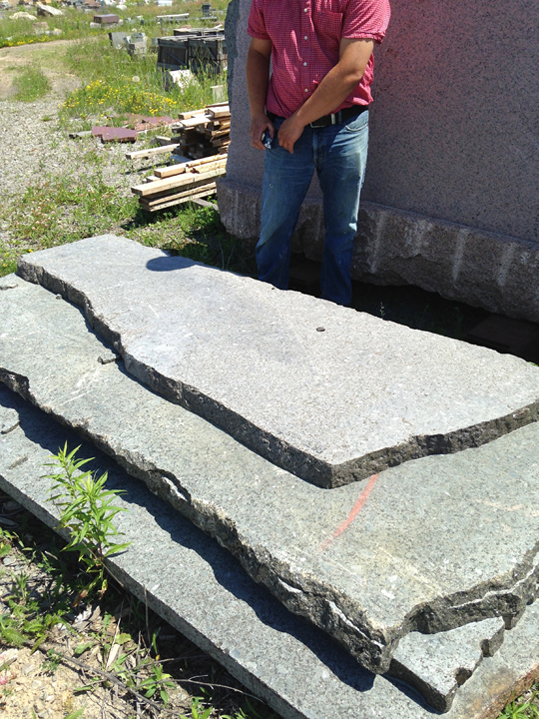

at HGHrockrock yardRuth HGH

The Magnolia Bench

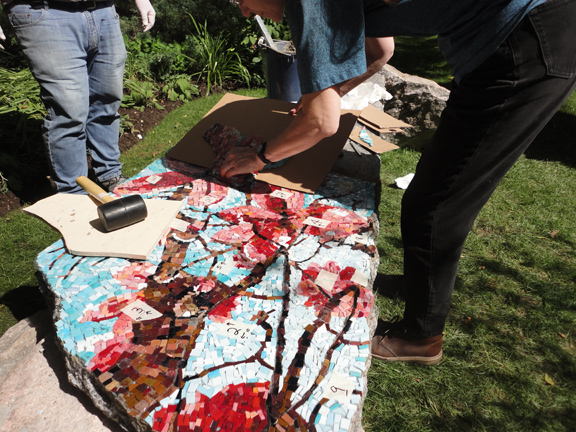

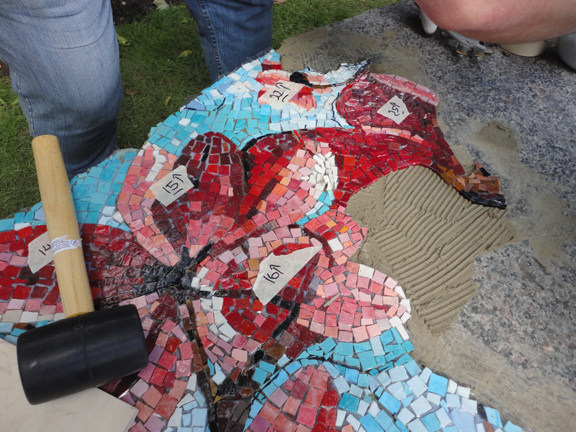

The Magnolia Bench was a commission consisting of a granite bench, magnolia mosaic bench-top and flower and butterfly carving. The carving was created by Ruth Arnold, a great wood carver we’ve known for many years. For this project we worked with the folks at HGH Granite, who were able to do the stone-work and the bench installation. The mosaics were created in the studio in sections and reassembled on-site, and installed using a specialty polymerized mortar. The tesserae for this mosaic are Italian smalti (glass) tiles.
magnolia1magnolia2
